Body Hardware

Body Hardware to suit Drop side and Tipper applications including hinges catches, latches, side swing kits,
pivot bar and bush assemblies, tailgate latches, corner post catches, flat hinges and crowned hinges. most
body parts are available ex stock.

Drop Side Flat Hinges

Part No Description Size Contents

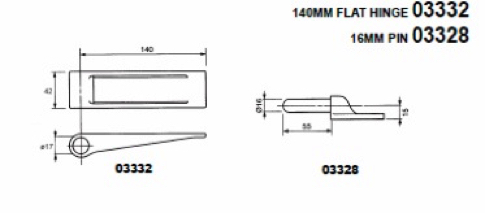

03332/03328 140mm long hinge flat & 16mm heavy pin kit 140 & 16mm 10x17mm long hinge, 17mm ID hole, 10x16mm heavy pin mount

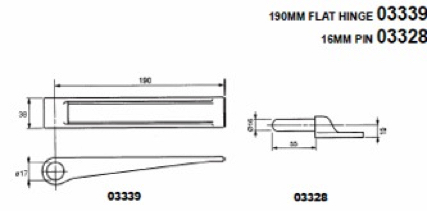

03339/03328 190mm Extra long hinge flat & 16mm heavy pin kit 190 & 16mm 10x17mm long hinge, 17mm ID hole, 10x16mm heavy pin mount

drop side hinges
drop side hinges

Corner Post Catches - Catch and Eye

Part No Description Size Contents
02108DX & 02108SX & 02112 Light Catch RH/LH & Pin eye kit 12mm 1XRH + 1xLH 12mm Catch, 2x 12mm Eye
02114DX & 02114SX & 02120 Medium Catch RH/LH & Pin eye kit 14mm 1XRH + 1xLH 14mm Catch, 2x 14mm Eye
02130DX & 02130SX & 02128 Heavy Catch RH/LH & Pin eye kit 16mm 1XRH + 1xLH 16mm Catch, 2x 16mm Eye

Side Swing Tailgate Kits

Part No Description Size Contents
BOD011A Side Swing Tailgate Kits 25mm 1x25mm solid elbow, 2x elbow bushes(loose) 4x25mm collars, 1x25mm tailgate latch, 1x tailgate hinge
BOD004A Side Swing Tailgate Kits 35mm 1x25mm solid elbow, 2x elbow bushes(loose) 4x25mm collars, 1x25mm tailgate latch, 1x tailgate hinge
BOD012 Side Swing Tailgate Kits 50mm 1x25mm solid elbow, 2x elbow bushes(loose) 4x25mm collars, 1x25mm tailgate latch, 1x tailgate hinge

Rear Pivot Kits
Part No Description Size Contents
BOD013 Rear Pivot Kits Bush Type 27mm 1x27mm x1200long solid pivot bar 2x27mm ID bushes 38mm long 2x27mm ID bushes 51mm long
BKD05A Rear Pivot Kits Bush Type 38mm 1x38mm D x1200 long solid pivot bar 4x support plates 4x 38mm ID bushes 51mm long 2x 38mm ID washers and collars
BKD05S Rear Pivot Kits Shoe Type 38mm 1x38mm x1000 long solid pivot bar 4 support plates 150mm wide x 180mm high x 10mm thick 4x smallbush 38mm ID x 51mm long 2x washers/collars 2x pivot shoes
BOD006 Rear Pivot Kits Bush Type 51mm 1x51mm x1430long solid pivot bar 2x51mm ID bushes 101mm long 4x50mm ID bushes 51mm long

pivot kits

BKD05A

pivot kits

BOD006

pivot kits

BOD013

Top Door Hinge and Release Kit 40mm
door hinge

BOD014         2 way Tailgate Door      40mm          1x50mm plate HD 1x40mm pin

                       Kit when a roadside                           1x1100mm handle drop 1x

                       top hinge side kit is                             handle lock with R clip and

                       required                                               chain



Double Action Bottom Hinge
bottom hing chart
Tailgate Latch and Hinge system
Part No Description Size Contents
02185/10184 Light Kit 20mm 1x20mm Latch, 1x20mm raised hinge
02236/02234 Compact Kit 24mm 1x24mm Latch, 1x24mm raised hinge
02220/02222 Medium Kit 30mm 1x30mm Latch, 1x30mm raised hinge
02224/02226 Heavy Kit 40mm 1x40mm Latch, 1x40mm raised hinge

Drop Side Crowned Hinges
Part No Description Size Contents
03312/03306 95mm Light Hinge/11mm Pin Kit 95/11mm 10x12mm Light Hinge, 12mmID hole, 10x11mm Heavy Pin Mount
03327/03328 70 mm Short Heavy Hinge/16mm Heavy Pin Kit 70/16mm 10x17mm Short Heavy Hinge, 17mmID hole, 10x16mm Heavy Pin Mount
03330/03328 124mm Long Heavy Hinge/16mm Heavy Pin Kit 124/16mm 10x17mm Short Heavy Hinge, 17mmID hole, 10x16mm Heavy Pin Mount

.
